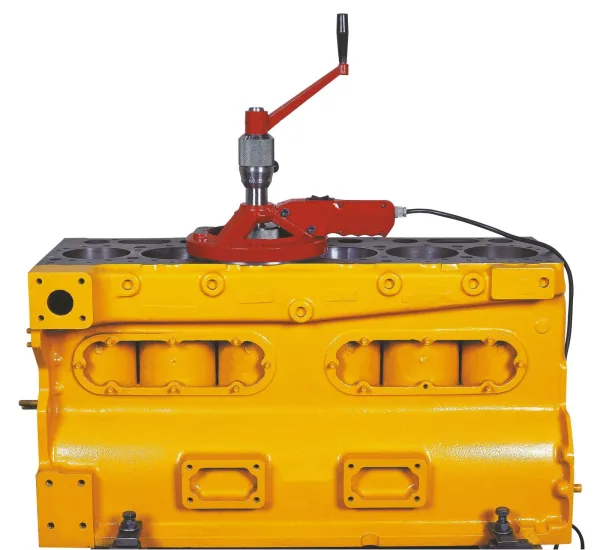

Wet Cylinder Liner Seat Milling Machine
Cylinder and block machining equipment includes wet sleeve seat facers, command boring machines and special adapter shafts. Facers work diameters from 2.9 to 9.0 inches (73 to 228mm) with 0.0004 inch (0.01mm) precision, while portable boring machines machine commands in diesel blocks. Equipment with electromagnetic base and hydraulic system serve Scania, Volvo, Mercedes and Cummins engines in specialized shops.
Specifications subject to change without notice. Some capacities listed may require optional accessories depending on the model. Refer to each unit's technical datasheet for exact dimensions and limitations.
Frequently asked questions
What are cylinder and block machines used for?
These machines perform specialized machining on engine blocks, such as facing wet sleeve seats, boring command holes and adapting different block types. They are essential for restoring the engine's original geometry after wear or damage.
What's the difference between portable facer and boring machine?
The facer works sleeve seats with rotary movement, using electromagnetic base fixed to the block. The boring machine makes cylindrical holes like commands, with cutting bar that advances hydraulically. Each has specific application in engine rebuilding.
What diameter ranges do these machines work?
Facers handle 2.9 to 9.0 inches (73mm to 228mm) diameter, covering from small engines to heavy diesel. Boring machines use 1.6 inch (40mm) bars with 5.5 inch (140mm) hydraulic stroke. Cutting depth reaches 1.0 inch (25mm) depending on equipment.
Which engines are compatible with this equipment?
They primarily serve diesel engines like Scania 124, Volvo, Mercedes and Cummins, but also gasoline engines within the diameter range. Specific adapter shafts allow working different block types on the same facer machine.
How to request quote or parts for Chinelatto machines?
Contact directly providing machine model, engine type you'll work on and if you need special adapter shafts. For replacement parts, have equipment code and part description ready for accurate identification and pricing.
Specifications subject to change without notice. Some capacities listed may require optional accessories depending on the model. Refer to each unit's technical datasheet for exact dimensions and limitations.
