Valve Seat Milling Machine

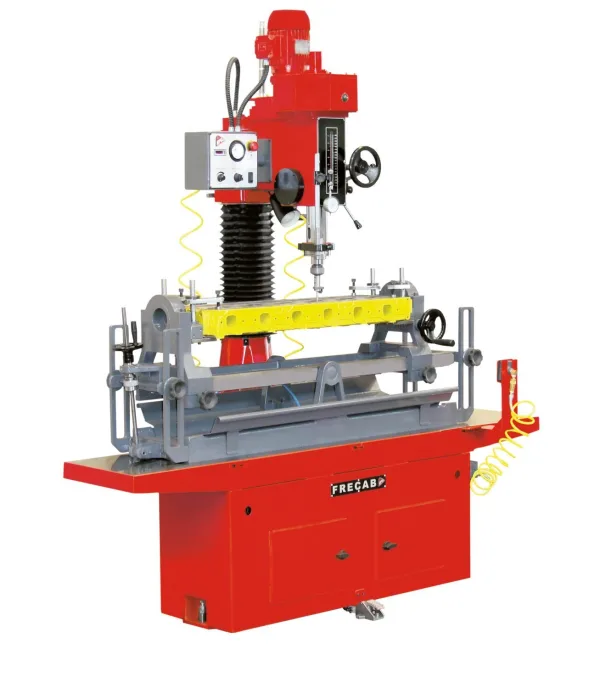

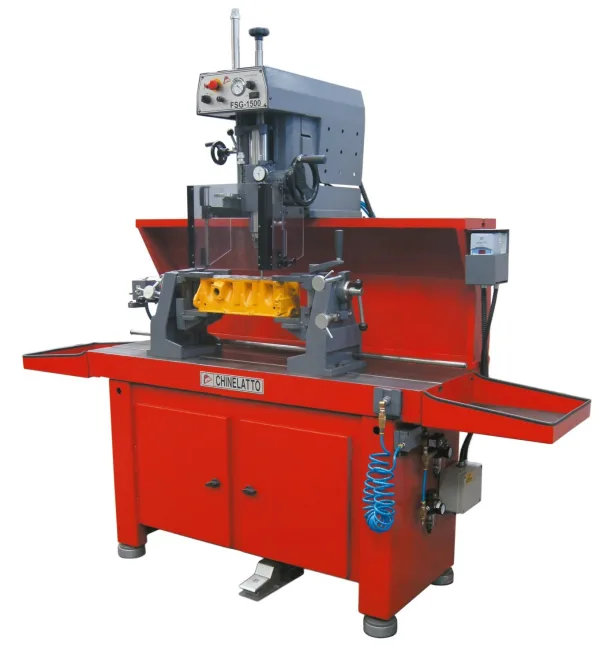

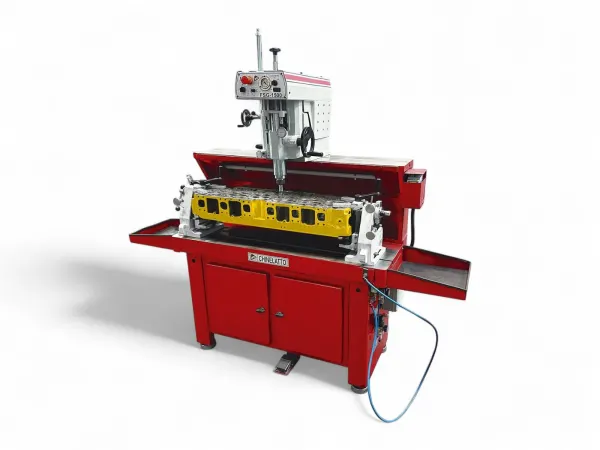

Valve seat milling machines are essential equipment for precise machining of valve seats in automotive cylinder heads. The line includes pneumatic and electric models, with capacities for different engine types from motorcycles to heavy-duty vehicles. The SUPREMA-P model operates pneumatically at 87 PSI with variable speed 20-80 RPM, while the FSG-1500 offers 0-350 RPM speed with ISO 30 taper. The FRECAB features ±12° tilting table and 360° rotation for maximum versatility. All include integrated tool sharpening system. Check the technical specifications of each model for exact dimensions.
Specifications subject to change without notice. Some capacities listed may require optional accessories depending on the model. Refer to each unit's technical datasheet for exact dimensions and limitations.
Frequently asked questions
What is a valve seat milling machine?
It's a specialized machine for machining valve seats in cylinder heads, ensuring perfect valve seating. It removes imperfections, corrects angles and dimensions, restoring engine sealing. Essential in machine shops for cylinder head reconditioning and automotive repair.
What's the difference between pneumatic and electric milling machines?
Pneumatic like SUPREMA-P uses compressed air (87 PSI) with lower rotation (20-80 RPM), ideal for delicate work. Electric offers higher speed (up to 350 RPM) and constant torque, suitable for higher production and different materials.
What seat diameters do these machines handle?

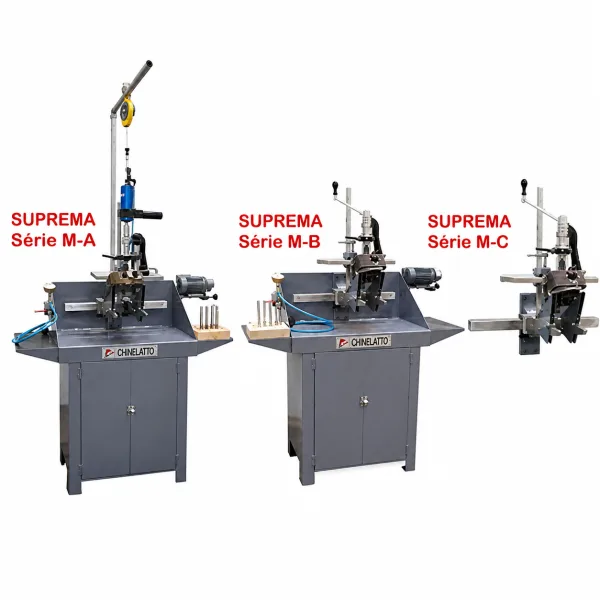

Models handle seats from Ø0.7 to Ø2.4 inches (Ø18-60mm), covering from motorcycles to diesel engines. The SUPREMA-M is specific for motorcycles, while models like FSG-1500 and FRECAB handle automobiles and commercial vehicles.
What engine types do these milling machines work on?
They handle motorcycle, automobile, truck, and industrial equipment engines. Table capacity (up to 59 inches in some models) allows working on 4, 6, 8-cylinder heads and larger configurations, depending on the chosen model.
How to request a quote for Chinelatto milling machine?
Contact us with information about the cylinder head types you work on, production volume, and available space. Our technical team will recommend the ideal model, provide training, installation, and after-sales support with genuine parts and specialized assistance.
Specifications subject to change without notice. Some capacities listed may require optional accessories depending on the model. Refer to each unit's technical datasheet for exact dimensions and limitations.
