Cylinder Boring Machine and Vertical Mill BVC-1400X

A vertical cylinder boring machine is used to machine and bore engine cylinders, removing scratches, wear and correcting out-of-roundness. It can also mill block and head surfaces. The BVC-1400X works with cylinders from 1.5 to 5.9 inches (39 to 150mm) in diameter, offering variable speeds from 100 to 1200rpm. It's essential for rebuilding diesel and gasoline engines, ensuring precise measurements and proper finish for new pistons and rings.

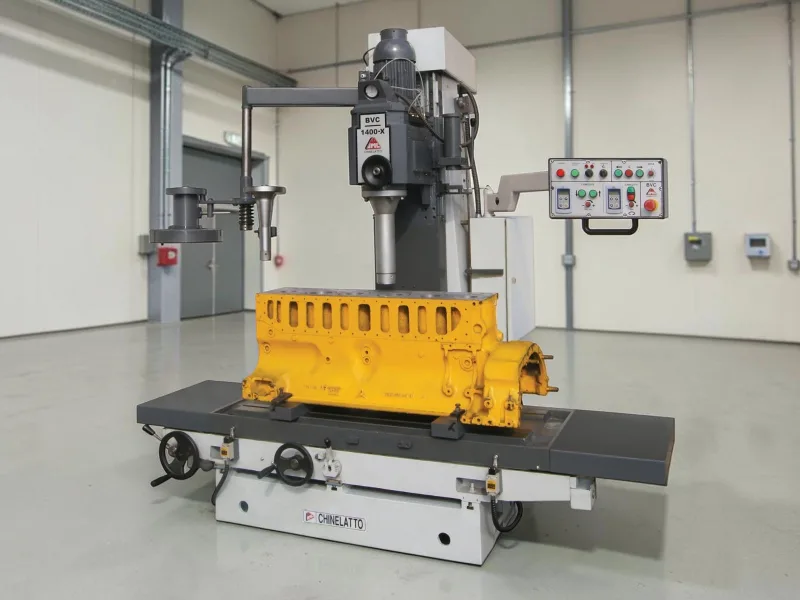

The BVC-1400X Chinelatto can bore cylinders from 1.5 to 5.9 inches (39 to 150mm) in diameter using extra spindles. With standard spindles, it works from 2.2 to 5.1 inches (55 to 130mm). The table measures 61.4x19.7 inches (1560x500mm) with 47.2 inches (1200mm) useful longitudinal stroke. For milling capacity is 47.2x12.6 inches (1200x320mm). Features 7hp motor, variable spindle speeds (100-1200rpm), vertical feed 1.6-39.4 IPM (40-1000mm/min) and table feed 0.4-16.9 IPM (10-430mm/min). Weighs 5070 lb (2300kg) net.

You can machine practically all types of automotive engines on this boring machine. With cylinders from 1.5 to 5.9 inches (39 to 150mm), it handles everything from large motorcycle engines, small cars to trucks and tractors. The large 61.4x19.7 inch (1560x500mm) table accommodates V6, V8 blocks and medium-sized diesel engines. The tool spindles cover cylinders from compact cars to Mercedes, Scania diesel engines and small marine engines.

The vertical boring machine like the BVC-1400X offers better precision and rigidity, as the tool moves down by gravity without lateral deflection. It's more compact and stable for small to medium cylinders. Horizontal machines take more space but facilitate loading heavy blocks. Vertical machines allow better cut visualization and chip removal. For shops with limited space and engines up to 5.9 inches (150mm), vertical machines are more practical and accurate.

Cylinder boring works by securing the block on the table with parallel supports, centering the tool spindle in the cylinder using movable pins and dial indicator. The tool rotates and descends cutting the cylinder in successive passes to final dimension. Variable speed drives allow adjusting cutting speed and feed rate according to material. Manual lubricator cools the tool. Each cylinder is measured with micrometer to ensure precision and parallelism between all engine cylinders.

Maintenance includes daily lubrication of prismatic guides using the installed pump, cleaning chips from headstock protection, checking manual lubricator oil and table cleaning. Weekly, verify alignment with dial indicators and calibrate micrometers on measuring devices. Monthly, check variable speed drives and adjust clearances. Service life exceeds 20 years with proper use. Brazed carbide tools last longer in soft materials, indexable inserts are economical for heavy use.

The BVC-1400X is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
