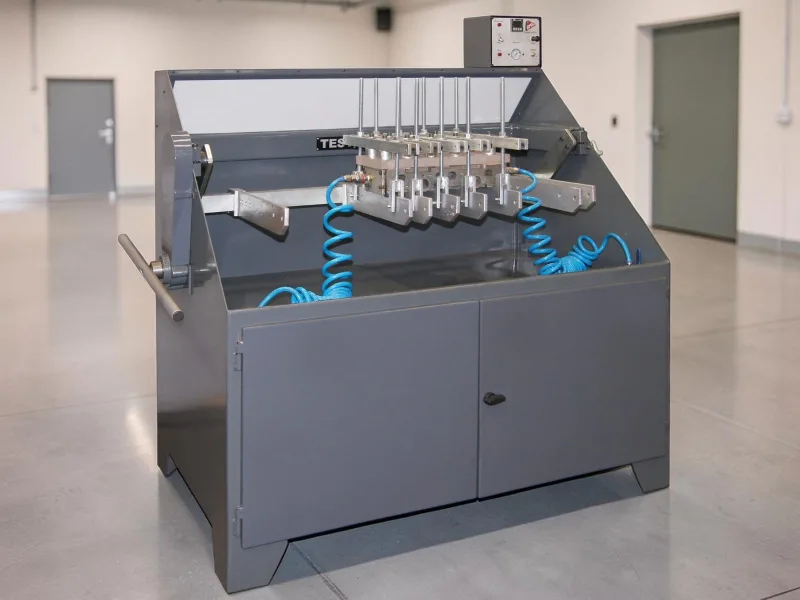

Cylinder Head Pressure Tester TESTRIM - 201°F Heating
Request a Quote
Request a Quote
Chat on WhatsApp +55 (19) 98154-8023
Spare Parts
Frequently Asked Questions
Catalogs
MANUFACTURER
Manufacturer
🇧🇷 CHINELATTO
Model
TESTRIM
Category
Teste de Trinca de Cabeçote
Video
▶ YouTube
Catalog
PT · ES · EN
Description
Detects cracks and leaks in cylinder heads with heating up to 201°F (92°C) and 180° tilt. Max capacity 47X18.5 inches (1200X470MM), 14.3 gal tank, 7HP heating. Professional engine shops
Technical Specifications
CAPACITY
| Capacity max. length x width of cilinder head | 47.24"x18.50" |
| Max.rotation cilinder head | 180° |
| Heating power | 5.25 kw |
| Electric Pump | 0.373 kw |
| Water capacity | 14.26 gallons |
| Electronic temperature regulator with dial display | Max. 197.6° F |
| Time heating water | 20 minutes |
ELECTRIC POWER
| Normal electric power | 220 volts - 60hz - 3 ph |
| Motor power | 5.623 kw |
DIMENSIONS - WEIGHT
| Machine Dimensions (Length x Width x Height) | 65" x 31" x 60" |
| Running Machine Dimensions (Lenght x Width x Height) | 65" x 31" x 60" |
| Maritime packing (Length x Width x Height) | 75" x 47" x 65" |
| Net - Gross Approx. weight | 705 lb / 992 lb |
STANDARD ACCESSORIES
- 06 Transparent plates:
- 19.7"x5.9"x1" - 19.7"x9.5"x1" - 14.6"x7"x1"
- 9.5"x6"x1.2" - 27.2"x7.5"x1.2" - 30.7"x9.5"x1.2"
- 08 Plane supports
- 02 Supports for slanted heads
- 08 Clamp bars
- 16 Locking screw with nuts
- 01 Locking wrench
- 53 Rubber pieces to enclose seats
- 33 Plates to circulation enclose
- 01 Electronic temperature regulador
- 01 Electric command-time controllers air / water
- 01 Beak of injection of compressed air
- 01 Air filter
- 02 Coupling beaks for circulation plates
OPTIONAL ACCESSORIES
- Extra Transparent plates
- Technicals specifications subjected to change.
Specifications subject to change without notice. Some capacities listed may require optional accessories. Confirm exact dimensions during quotation.
Demonstration Video
TESTRIM
Cylinder Head Pressure Tester TESTRIM - 201°F Heating
Play video
Frequently Asked Questions
▸ What is a pressure testing machine for cylinder heads with heating used for?
The pressure tester with heating detects cracks and leaks in cylinder heads through hydrostatic testing with water heated up to 198°F (92°C). Heat expands the metal and reveals micro-cracks invisible in cold testing. The TESTRIM Chinelatto allows tilting the head up to 180° for better bubble visualization, ensuring complete testing of water and oil galleries. Essential for confirming if the cylinder head is sealing properly after repair.
▸ What is the maximum capacity of the TESTRIM tester for cylinder heads?
The TESTRIM supports cylinder heads up to 47x18.5 inches (1200x470mm), covering engines from small cars to medium trucks. It has a 14.3 gal (54L) tank, 7 hp (5.25kW) heater that warms water in 20 minutes, and 0.67 hp (0.5cv) electric pump for circulation. The machine measures 5.4x2.6x5 ft (1.66x0.80x1.52m) and weighs 705 lb (320kg). Operates on 220V three-phase, total power 7.5 hp (5.623kW). Includes acrylic plates, supports and seals for various head types.
▸ What types of engines can be tested on this leak testing machine?
With 47x18.5 inch (1200x470mm) capacity, the tester accepts cylinder heads from compact cars, sedans, SUVs, pick-ups and light to medium trucks. Tests 4, 6 and 8-cylinder inline engines, V6 and medium-sized V8s. Adjustable supports and sealing plates accommodate different head formats. The 180° tilt allows testing heads with complex geometries. Ideal for machine shops serving mixed fleets, from compact cars to commercial vans.
▸ What's the difference between heated tester and cold pressure testing?
Cold testing only detects large cracks and obvious leaks. With heating up to 198°F (92°C), metal expands and micro-cracks open up, revealing defects invisible when cold. Many cylinder heads pass cold testing but fail later in the hot engine. The TESTRIM with heating simulates real working conditions, preventing service comebacks. The extra 20 minutes heating time pays off through diagnostic reliability.
▸ How does the hydrostatic testing process work on cylinder heads?
First, all cylinder head openings are sealed with acrylic plates and rubber gaskets. Fill with water, heat to 198°F (92°C) and apply pressure with compressed air. Bubbles indicate leaks - the TESTRIM's 180° tilt helps visualize all points. Electronic control maintains stable temperature. Forced circulation distributes heat evenly. Testing takes about 30 minutes total - 20 to heat up, 10 for complete visual inspection.
▸ What maintenance is needed on the cylinder head tester?
Change tank water weekly to prevent rust and deposits. Clean heating element monthly removing calcium buildup. Check rubber seals - replace when they dry out. Keep acrylic plates scratch-free as scratches mask leaks. Test pressure valves and thermostat every six months. The TESTRIM Chinelatto has replacement parts available. With proper maintenance, it lasts over 10 years in intensive machine shop use.
▸ Cylinder Head Pressure Tester TESTRIM: how much does it cost?
The TESTRIM is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
