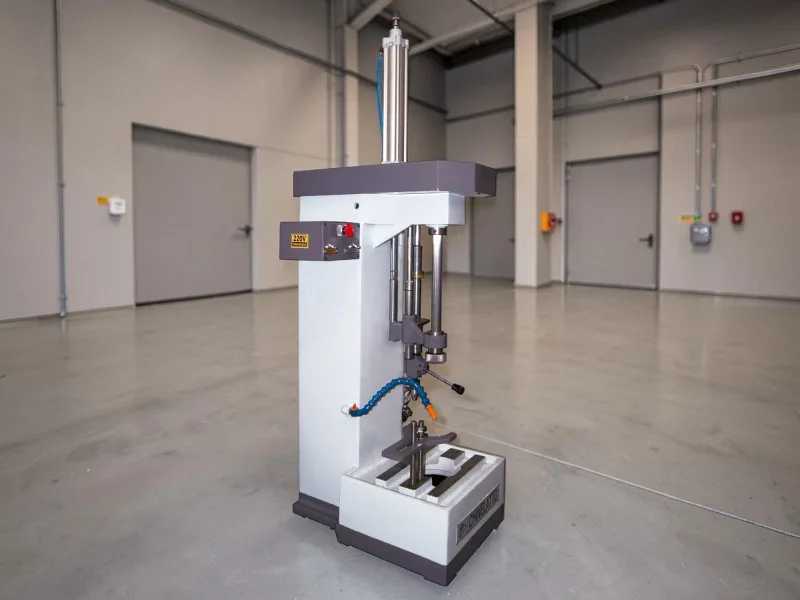

Pneumatic Cylinder Honing Machine BPM-200 Chinelatto for Motorcycles

The pneumatic honing machine is used for final finishing of motorcycle cylinders after the boring process. It removes marks from previous tooling and creates the crosshatch pattern necessary for lubricant oil retention. Honing ensures perfect piston ring sealing, recovering engine compression. It's essential in any motorcycle engine shop to deliver professional and long-lasting service to customers.

The BPM-200 pneumatic honing machine works with motorcycle cylinders from Ø1.6 to 4.3 inches (Ø41-108mm), covering from small bikes to larger displacement engines. It has 7.9 inches (200mm) useful stroke and runs on only 0.5hp electrical power at 220V three-phase. Compressed air consumption is low, just 11.5 cubic feet per minute. Comes complete with 2 honing tools: one for 1.6-2.6 inch (41-67mm) diameters and another for 2.7-4.3 inch (68-108mm), including stones and felts for each range.

The BPM-200 honing machine accepts cylinders from practically all motorcycle types, from 125cc to high-displacement models. The 1.6-4.3 inch (Ø41-108mm) range covers trail, street, naked, sport and custom bikes. Works for both 2-stroke and 4-stroke engines, as long as the cylinder is within dimensional capacity. The 7.9 inch (200mm) stroke is suitable for most domestic and imported engines. It's ideal for shops servicing various motorcycle types.

The main difference lies in the drive system and precision. The BPM-200 pneumatic honing machine offers smoother and more controlled movement through compressed air, generating less vibration that damages the finish. Torque is more constant with lower risk of tool binding in the cylinder. Electric honing machines may have speed variation under load, while pneumatic maintains more stable velocity. For professional work on motorcycle cylinders, pneumatic ensures better honing quality.

Honing is done with the honing tool fixed in the machine, which has abrasive stones and felts. The tool rotates and makes alternating movement (up and down) inside the cylinder, removing micro scratches and creating the crosshatch pattern of grooves. Stones make the initial cut and felts provide final finishing. The BPM-200 automatically controls these movements through the pneumatic system, ensuring uniformity. The process removes 0.0008-0.002 inches (0.02-0.05mm) from diameter, leaving the surface ideal for rings.

Basic maintenance includes daily cleaning of stones and felts, pneumatic system verification and lubrication of grease points per manual. Abrasive stones have variable service life depending on use - typically 50 to 100 cylinders per set. It's important to keep compressed air clean and dry, using water separator filter. Chinelatto offers technical support and replacement parts. Extra stones and felts are available as optional accessories. Preventive maintenance ensures precision and machine service life.

The BPM-200 is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
