4-CYLINDER Engine Block Fixture Table M-800 -

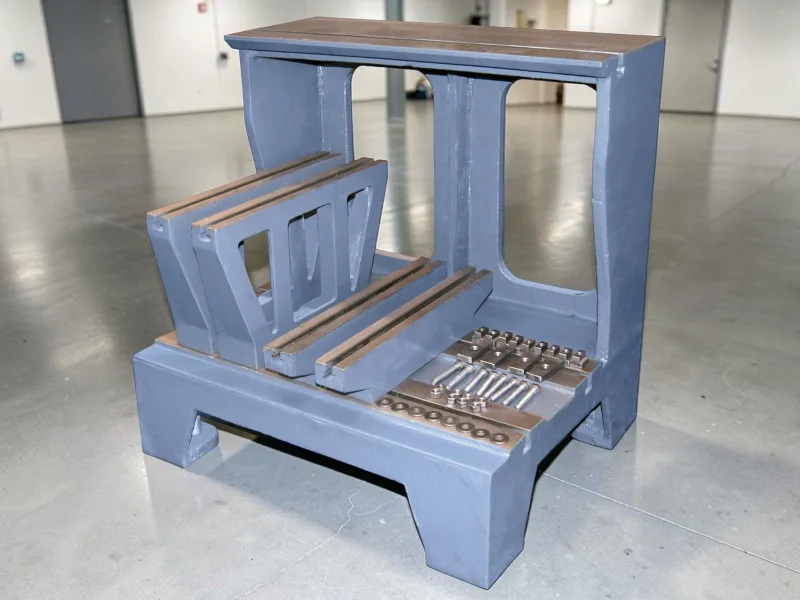

The fixing table is used to secure engine blocks and liners from 4-cylinder engines during machining and grinding processes. The M-800 model from Chinelatto offers maximum precision fixation through adjustable shims and threaded shafts. It allows working with blocks of different sizes within the useful dimensions of 31.5x17.3x22.4 inches (800x440x570mm). It's essential equipment for shops doing engine reconditioning, ensuring the block stays firm during milling, drilling or other machining operations.

The M-800 table from Chinelatto has useful dimensions of 31.5 inches (800mm) length, 17.3 inches (440mm) width and 22.4 inches (570mm) height. It comes with complete accessories including two pairs of grooved shims (heights of 3.9 inches and 7.9 inches / 100mm and 200mm), 9 nuts, 4 threaded shafts, 8 flat washers 1/2", hex bolts of different sizes and 12 hex nuts UNC 1/2". These dimensions allow working with various sizes of 4-cylinder engine blocks with precision.

The M-800 table is designed specifically for 4-cylinder engine blocks. With its useful dimensions of 31.5x17.3x22.4 inches (800x440x570mm), it accepts blocks from different manufacturers and models within this configuration. The adjustable shims of 3.9 inches and 7.9 inches (100mm and 200mm) height allow adaptation to blocks of different thicknesses. The fixation system with threaded shafts and nuts ensures that both small and larger blocks stay well secured during machining. It's ideal for automotive engines, light utility vehicles and some types of 4-cylinder industrial engines.

The fixed table like the M-800 offers more rigid and stable structure during machining, since it doesn't have moving parts that can generate clearances. Adjustable tables allow height and inclination adjustments, but may have lower rigidity. The M-800 compensates this limitation through the adjustable shims of 3.9 inches and 7.9 inches (100mm and 200mm), which allow adapting the height according to the block. For shops working mainly with 4-cylinder engines, the fixed table offers better cost-benefit and greater long-term durability.

The system works through threaded shafts that pass through the table holes and are fixed with nuts and washers. First place the adequate shims (3.9 inches or 7.9 inches / 100mm or 200mm) according to the block height. Then position the block on the table, adjust the threaded shafts in the correct positions and tighten the nuts to secure firmly. The grooved shims help with alignment and distribute the fixation force. The system allows securing blocks of different sizes while always maintaining good rigidity during machining.

Maintenance is simple and increases the M-800 table's service life. Always clean after use removing chips and oil with clean cloth. Lubricate threaded shafts periodically with adequate grease to prevent seizing. Check the tightness of nuts and bolts regularly. Keep shims clean and without burrs to ensure precise fixation. Store in dry place to prevent oxidation. With proper maintenance, the Chinelatto table offers years of reliable use in the grinding shop.

The M-800 is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
