L-Type Cylinder Head Fixture Device 42.000350

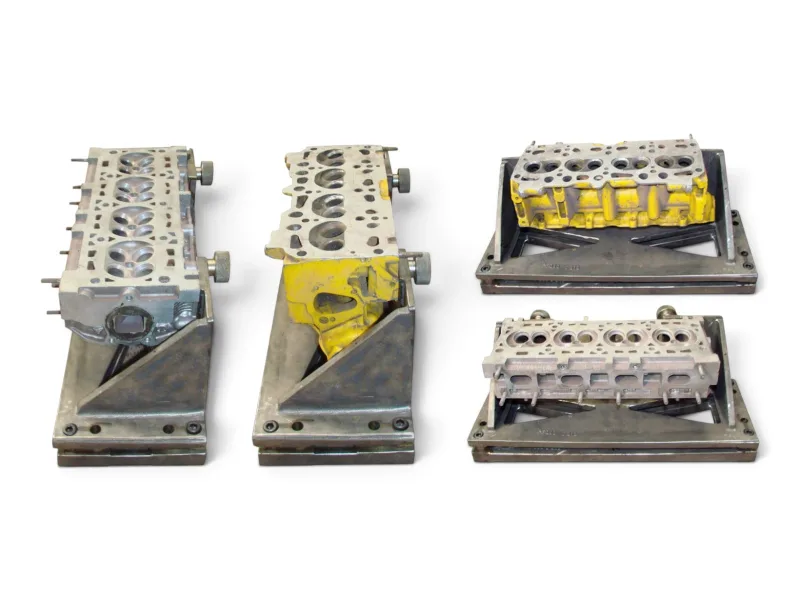

The Type L fixture device is used to secure inclined cylinder heads during grinding and milling processes. It keeps the cylinder head in the correct position while you work on the surface, ensuring precision in the finish. It's made of cast iron for greater stability and durability. The Chinelatto model 42.000350 supports cylinder heads up to 14.6x6.7x7.1 inches (370x170x180mm), being ideal for shops working with engines of various sizes. Without proper support, it's impossible to achieve the necessary flatness on the cylinder head surface.

The Chinelatto model 42.000350 device has a clamping capacity of 14.6x6.7x7.1 inches (370x170x180mm) - length x width x height. These dimensions allow working with most domestic and imported engine cylinder heads, from small cars to larger pickup truck and van engines. The cast iron construction ensures no vibration during work, maintaining precision. It's important to verify that the cylinder head you'll be working on fits within these measurements before using the device to avoid clamping problems.

The fixture accepts inclined-base cylinder heads that fit within 14.6x6.7x7.1 inches (370x170x180mm). This includes most domestic car cylinder heads like VW, GM, Fiat, Ford, plus many small and medium-sized Asian and European imports. Large motorcycle and jet-ski engines also typically fit. The key requirement is that the cylinder head has an inclined base and doesn't exceed the maximum dimensions. Very large truck cylinder heads or big V8 engines may not fit in the 42.000350 device.

A common vise wasn't designed for inclined cylinder heads and can damage surfaces or not hold properly during work. The Type L fixture has specific geometry for the cylinder head's inclined base, distributing clamping pressure evenly. Cast iron absorbs vibrations better than a common steel vise. Additionally, the Type L allows better access to the cylinder head work areas. The Chinelatto model 42.000350 offers more precise and secure clamping, preventing the part from moving during grinding or milling operations.

First, thoroughly clean the cylinder head base and the fixture to remove oil and dirt. Position the cylinder head in the Type L fixture by aligning the inclined base with the support. Gradually tighten the clamping bolts, alternating between them to distribute pressure evenly. Check that the cylinder head is secure, but don't overtighten to avoid deformation. During milling work, stop periodically to verify the clamping remains secure. The model 42.000350 allows fine positioning adjustments before final tightening.

A quality cast iron fixture like the Chinelatto 42.000350 can last decades with proper use. Cast iron is highly wear-resistant and doesn't suffer from grinding vibrations. To maintain service life, always clean after use, remove chips and debris, and keep threads lubricated. Avoid impacts and drops that can cause cracks. With basic maintenance, it's common for these fixtures to last over 20 years in professional shops, making them an investment that pays for itself over time.

The 42.000350. is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
